2000kg Manual Pallet Stacker

17/07/2018 14:52

Feature: 2000kg Manual Pallet Stacker Features 1.Power stacker forklift trucks are Widely used easy operation. High efficiency durability long life. 2.The whole cast cylider seal appearance durable effectively prevent leakage. 3.Comfortable p

Contact Us

  • 2000kg Manual Straddle Stacker



    Features

    1.Power stacker forklift trucks are Widely used, easy operation. High efficiency, durability, long life.
    2.The whole cast cylider seal appearance, durable, effectively prevent leakage.
    3.Comfortable plastic bags handles energy, and convenient.
    4.High quality steel, and surface electrostatic ot injection.
    5.Nylon and iron wheels, adopt to different place

    There are three types material's stacker you can choose!


    Channel Steel Material Stacker

    I-beam Steel Material Stacker

    C Type Steel Material Stacker

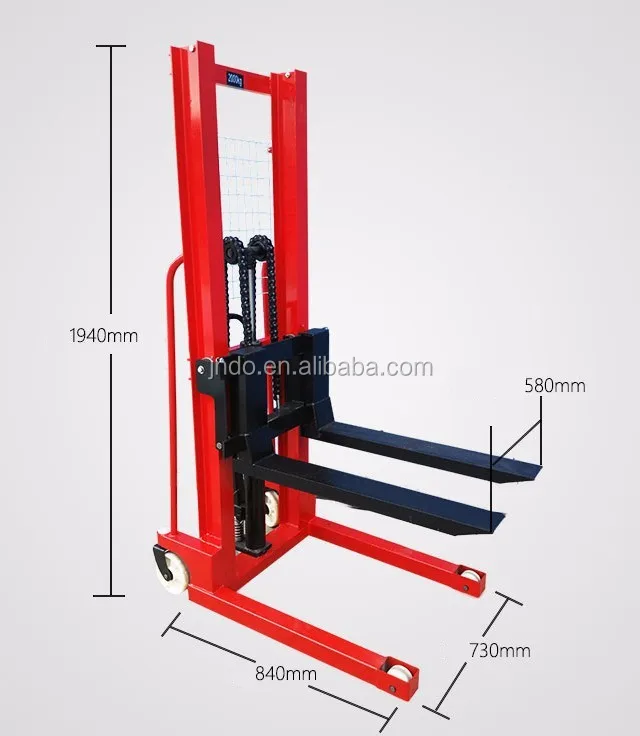

    Size (Using 2000kg as an example)



    Technical Parameter of Manual Stacker

       Model
    MST-A 1.0
    MST-A 2.0
    MST-A 3.0
    Rated load(kg)
    1000
    2000
    3000
    Height of fork lowered(mm)
    85
    85
    85
    Fork regulate width(mm)
    230-580
    270-580
    320-580
    Lifting height(mm)
    1600
    1600
    1600
    Fork length(mm)
    900
    900
    900
    Lifting speed(mm/stroke)
    20
    14
    10
    lowering speed(mm/stroke)
    controllable
    controllable
    controllable
    Dimension(mm)
    1450*720*1970
    1450*720*1970
    1450*720*1970
    Front wheel dimension(mm)
    Φ80*50
    Φ80*50
    Φ80*50
    Rear wheel dimension(mm)
    Φ180X50
    Φ180X50
    Φ180X50
    Min.fuel quantity(L)
    1.6
    2.0
    3.0
    Net weight(kg)
    145
    175
    200
    Note
    Special specification and color can be according to customers' special requirements
    Detailed Images

    Customized Extension Stacker
