2 Ton Manual Hydraulic Pallet Truck

17/07/2018 14:52

Feature: Product Description pallet truck manual scissor lift 1000kg with long forks Applications: The manual high lift pallet truck has a 1000kg capacity and is the ideal product to assist your workforce in handing and lifting needs. Features: A su

Contact Us

  • 2 Ton Manual Hydraulic Pallet Truck


    The Hand pallet truck is the ideal "storage aid" and "handling partner" for manual transport tasks over short distances, excellently suitable for use on lorries, in small warehouses and markets etc.
    Technical parameter of pallet truck

        Model
    CBY-AC 2.0
    CBY-AC 2.5
    CBY-AC 3.0
    CBY-AC 3.5
    CBY-AC 5.0
    Capacity(kg)
    2000
    2500
    3000
    3500
    5000
    Min.fork height(mm)
    75
    85
    Max.fork height(mm)
    200
    Fork length(mm)
    1150/1200
    1200

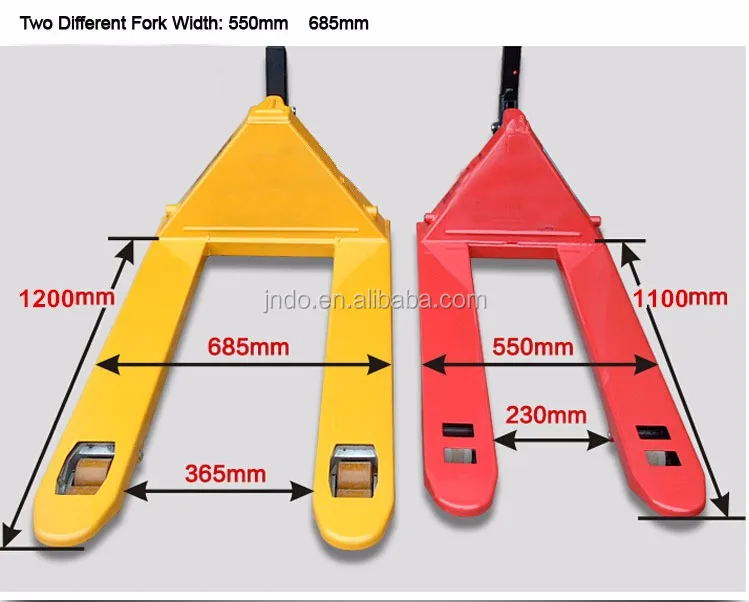

    Fork overall width(mm)
    550/685
    685
    Fork inner width(mm)
    230/365
    365
    Front wheel size(mm)
    74*70
    80*70
    Rear wheel size(mm)
    180*50
    Net weight(kg)
    60/80
    75/80
    80-90
    180










    Detailed Images
    Packing & Delivery

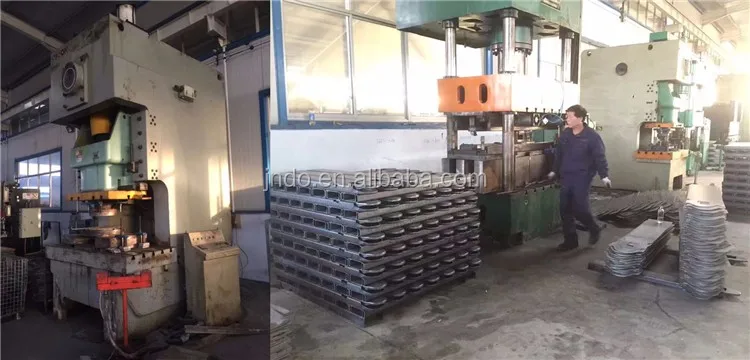

    Scale manufacture
